HelloKafka

This repository provides brief introduction to basic Kafka concepts followed by a simple Hello World using both CLI and Java Client.

What is Kafka?

Apache Kakfa is a streaming platform. It uses PubSub (Publisher Subscriber) model for streaming. In Kafka, Publisher is called as Producer and Subscriber is called as Consumer.

Prerequisites

Kafka requires Java. Make sure you have it in place by executing following command.

java -version

You should get output similar to following:

java version "1.8.0_121"
Java(TM) SE Runtime Environment (build 1.8.0_121-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.121-b13, mixed mode)

If Java is not installed or configured properly, please follow steps mentioned here or here.

Downloading Kafka

Head over to Apache Kafka’s download page and download Kafka. For reference, Kafka_2.12-v2.1.0 was used here for windows 7 environment.

Decompress(Extract or Un-Tar) the package and we’re good to go.

Setting up Kafka

Starting Zookeeper

Open command prompt in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\ and execute command:

bin\windows\zookeeper-server-start.bat config/zookeeper.properties

This will start Zookeeper with default configurations specified in “config/zookeeper.properties” properties file.

Starting Kafka

Open command prompt in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\ and execute command:

bin\windows\kafka-server-start.bat config/server.properties

This will start Kafka with default configurations specified in “config/server.properties” properties file.

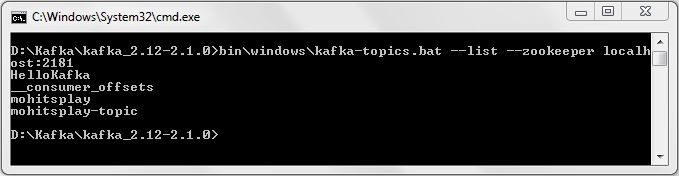

Is it Running?

In order to check whether Kafka is up and running, open command prompt in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\ and execute command:

bin\windows\kafka-topics.bat --list --zookeeper localhost:2181

This will list down all topics present in Kafka server.

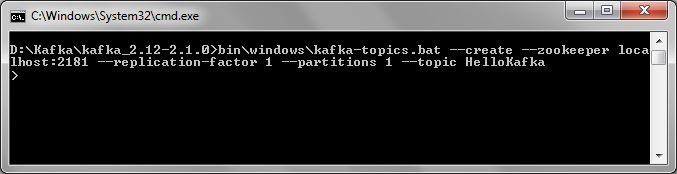

Creating a Topic

Open command prompt in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\ and execute command: Please note that HelloKafka is name of the topic in below command. You can give name of your choice for topic and note it down. For reference, Topic Name HelloKafka will be used in all below commands.

bin\windows\kafka-topics.bat --create --zookeeper localhost:2181 --replication-factor 1 --partitions 1 --topic HelloKafka

Hello World using CLI

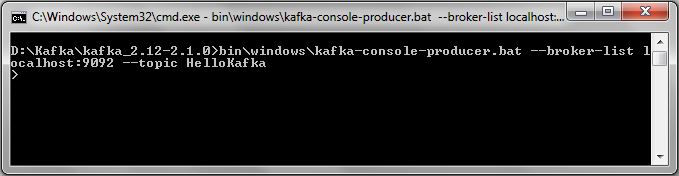

Starting Producer

Open command prompt in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\ and execute command: Below command will create a producer for topic specified in below command.

bin\windows\kafka-console-producer.bat --broker-list localhost:9092 --topic HelloKafka

This will get you producer console for sending messages to topic. Enter any message and hit enter. Get ready to get the entered message in Consumer console.

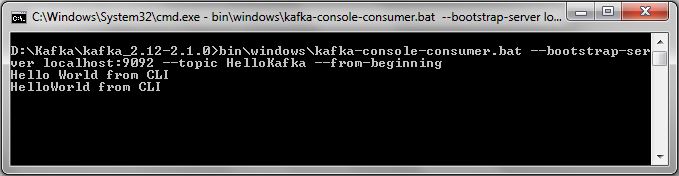

Starting Consumer

Open command prompt in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\ and execute command: Below command will create a consumer for topic specified in below command.

bin\windows\kafka-console-consumer.bat --zookeeper localhost:2181 --topic HelloKafka --from-beginning

This will get you consumer console and show all messages related to topic.

Hello World using CLI is completed.

Hello World using Java Client

Project

Create a project named HelloKafka in Eclipse and import files. Add all JARs present in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\libs to build path of the project.

Producer

MyProducer.java is the Source for Kafka Producer client implementation in Java. Run the code and enter Topic name created in above steps and add a message. The message will be available in both CLI and Java Consumer. Refer below illustration for reference.

Consumer

MyConsumer.java is the Source for Kafka Consumer client implementation in Java. Run the code and enter Topic name. The Consumer will now show all the messages related to the Topic from Kafka. Refer below illustration for reference.

Hello World using Java is completed.

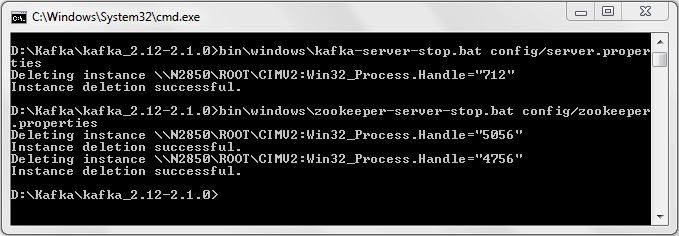

Stopping Kafka and Zookeeper

In order to stop Kafka and Zookeeper,

Execute below commands in <Extracted-Kafka-Path>\kafka_2.12-2.1.0\

bin\windows\kafka-server-stop.bat config/server.properties
bin\windows\zookeeper-server-stop.bat config/zookeeper.properties

Please note that we are first stopping Kafka and then Zookeeper as Kafka is managed by Zookeeper hence it should be stopped before Zookeeper.
